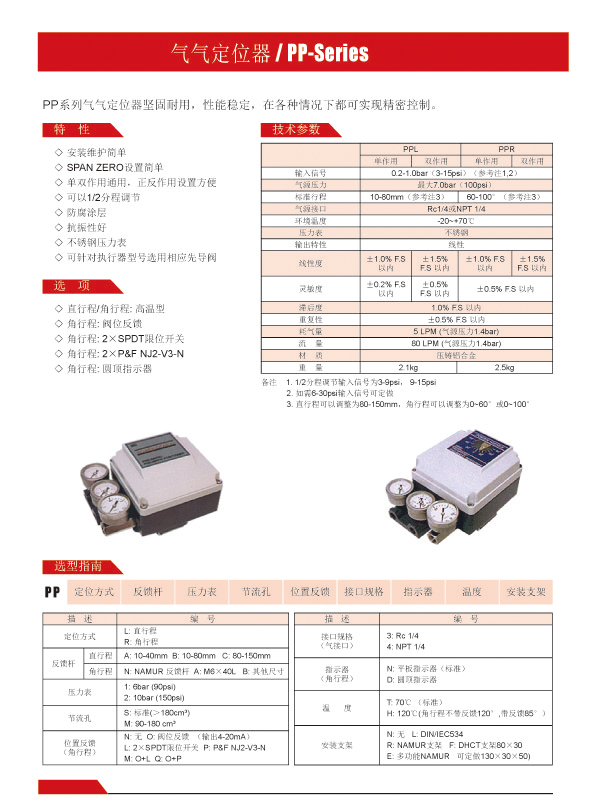

| POWER-GENEX定位器PPL |
 |
Introduction
Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments
Features
- Easy maintenance
-Precise calibration with simple SPAN and ZERO adjustments
-Simple conversion to direct acting or reverse acting
-1/2 split range available
-Rugged aluminum housing with corrosion-resistant coating
-Vibration resistant design
-Stainless steel gauges standard
-Restricted pilot valve orifice kit for small actuators included
Option
High temperature
Specifications
|
|
PPL
Linear Type (lever feedback) |
|
Single |
Double |
|
Input signal |
0.2 ~ 1.0bar (3 - 15psi) |
|
Supply air pressure |
Max. 7.0bar (100psi) |
|
Standard stroke |
10 ~ 80mm |
|
Pneumatic connections |
Rc 1/4 or 1/4 NPT |
|
Ambient temperature |
-20 ~ +70℃ |
|
Pressure gauge |
Stainless steel |
|
Output characteristics |
Linear |
|
Linearity |
Within± 1.0% F.S |
Within± 1.5% F.S |
|
Sensitivity |
Within± 0.2% F.S |
Within± 0.5% F.S |
|
hysteresis |
Within 1.0% F.S |
|
Repeatability |
Within± 0.5% F.S |
|
Air consumption |
5 LPM (Sup. 1.4 kgf/㎤) |
|
Flow capacity |
80 LPM (Sup. 1.4 kgf/㎤) |
|
Material |
Aluminum die-cast |
|
Weight |
2.1 kg |

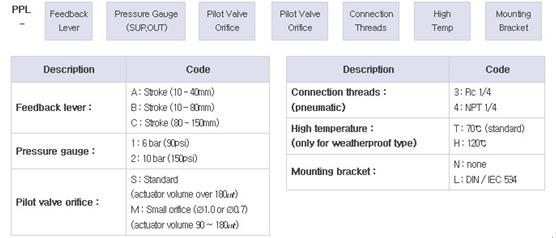

How to order
 |
|
|
|
|
