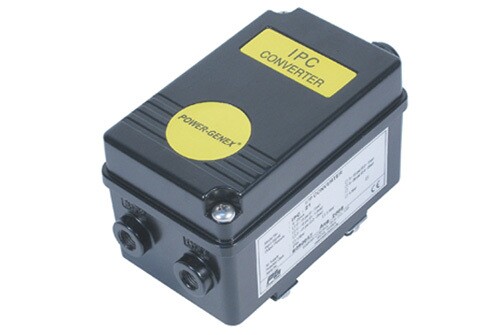

| IPC电/气转换器 |
 |
Introduction
Dynamic valve drive to convert 4~20㎃ current signal to pneumatic output pressure with state-of-the art piezoelectric technology
Features
Rugged aluminum die-cast housing
Precise control performance and high dynamic response
Simple and easy to set
Low air consumption due to piezo electric microvalve
Specifications
| Model |
IPC |
| Input signal |
4 ~ 20㎃ @ 24 VDC , 2-wire |
| Output pressure |
0 - 1bar (0 - 15psi)
0.2 - 1bar (3 - 15psi)
0.4 - 2bar (6 - 30psi)
0.2 - 3bar (3 - 45psi) |
| Output characteristics |
Linear to input signal |
| Action |
Direct |
| tal error |
Max. error ±0.3% of span
(linearity + hysteresis + repeatability) |
| Supply air |
Filtered compressed, dry and non-oiled air (up to 5 micron) |
| Operating temperature |
-20 ~ +70℃ |
| Protection class |
IP55 |
| Impedance |
425 Ω @ 20㎃ |
| Mounting type |
Rail (to DIN EN 50022) |
| Pneumatic connections |
Rc 1/8 |
| Electrical connections |
PG 9 |
| Body Material |
Aluminum die-cast |
| Weight |
820 g |
How to order
| Output pressure |
Required supply air |
Part Number |
| 0 - 1bar (0 - 15psi) |
1.5 bar (23psi) |
IPC - 01 |
| 0.2 - 1bar (3 - 15psi) |
1.5 bar (23psi) |
IPC - 21 |
| 0.4 - 2bar (6 - 30psi) |
2.5 bar (38psi) |
IPC - 42 |
| 0.2 - 3bar (3 - 45psi) |
3.5 bar (53psi) |
IPC – 23 |
| Other Pressure |
|
On request | |
|
|
|
|
