Mechanical Limit Switch, Technopolymer, NEMA 4/4X, Mechanical Type, CSA/UL Approvals with Mounting Bracket.

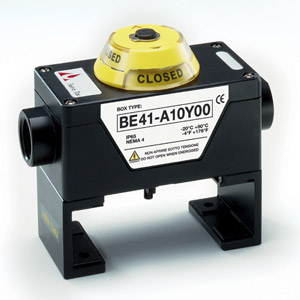

The MAX-AIR Technology BE41 Limit Switch Box represents a new dimension in position indication for rotary actuators.  Manufactured completely in technopolymer with stainless steel fasteners and Nema 4/4X rating, these products are corrosion resistant and suitable for the most corrosive environments.

FEATURES

Quick Set Cams

The operating position of the switches can be easily changed by manually adjusting the high-resolution spline cams.  The cams are spring backed and will not be affected by normal vibration.

Easy Wiring

Despite its compact design, MAX-AIR switch boxes are easy to wire up with plenty of room to bring wires into the enclosure.  As standard, each unit has two 1/2” NPT conduit entries, and a terminal strip which is angled to allow for ease in attaching external wires.

Compact Design

MAX-AIR switch box has a compact construction, minimizing valve package envelope size.

High Visibility Indicator

Our high-visibility indicator offers clear location of the current valve position.

Versions

Offered with two mechanical micro switches or different types of proximity sensors.

Inclusive Mounting Bracket

A technopolymer mounting bracket is supplied as standard and fits NAMUR top-mounting hold spacing 80mm x 30mm.  This bracket allows the use of standard NAMUR stem height of 30mm, and 20mm with a coupling included in the standard kit.

Please review the MS41-2 Specifications and other available options in the Limit Switches & Position Indication Overview Brochure.
